IMX307 IP Camera Module Full Color WDR Support For Extension POE WiFi Camera Module
IMX307 1080P IP WiFi Camera Module:
DS -E68B-V2 IP WIFI camera module used Sony's IMX307 2MP color rolling shutter 1/2.8 - inch CMOS star - light CMOS image sensor. It has a large pixel size of 2.9 µm x 2.9 µm, a resolution of 1920 x 1080 pixels, It has high sensitivity and low - light performance, and can capture more detailed images in low - light environments.
Full HD 2-megapixel 1920*1080 WDR low light IMX307 IP WIFI camera module. It has IP network - connection function and can be easily connected to local - area networks or the Internet, supporting various network protocols such as TCP/IP, UDP, HTTP, and HTTPS to realize remote monitoring and management. In addition, it supports WiFi - connection mode, providing a more flexible network - deployment option. Users can choose wired or wireless connection according to actual needs.
Specification:
| Sensor | 1/2.8" IMX307 CMOS | Resolution | 2MP 1920*1080 |
| Pixel Size | 2.9um*2.9um | Output Format | H.264/H.265 JPEG/MJPEG |
| Shutter Type | Rolling Shutter | Interface | Supports serial port and RS485 transmission |
| Power Supply Voltage | DC4.5---16V(+/-10%) | DDR | 512Mb |
| Minimum illumination | color 0.05Lux@F1.2 Black and white 0.01@F1.2 | Main stream | 1920x1080/30fps；1280x720/30fps |
| Network Protocol | Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF/P2P, with optional GB28181, RTMP, and multiple NVR docking protocols. Supports in vehicle JT808, JT1078 protocols | Secondary stream | 720x576/30fps；640x480(VGA)/30fps； 640x360/30fps；352x288/30fps； 320x240(QVGA)/30fps |
| WDR | >90dB | Signal Noise Ratio | >45db(AGC OFF) |
| Image Flipping | Support horizontal and vertical flipping | Flash | 16MB Support CAT1,CAT4 |
| Image Settings | Brightness, contrast, chromaticity, sharpness, backlight, etc | 4G | Support CAT1,CAT4 |
| Application | Surveillance cameras/Intelligent analysis/Humanoid detection/intrusion detection/motion detection/occlusion alarm |
Technical & Mechanical:
- Power Supply Voltage: DC4.5---16V(+/-10%)
- Operating Temperature: -20°C to +70°C

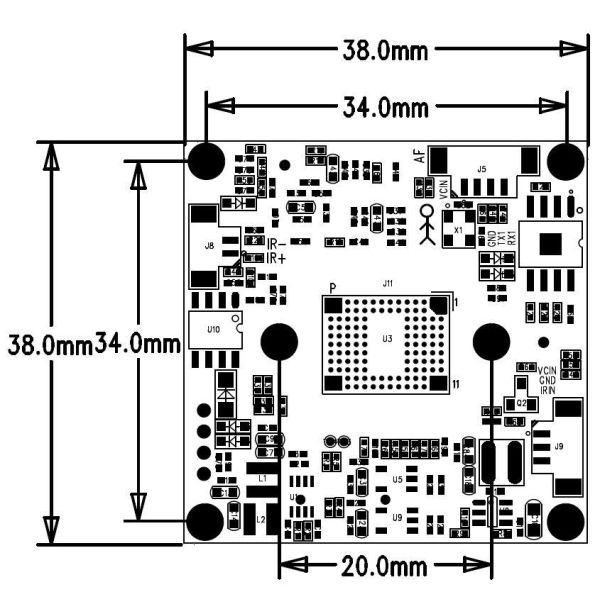

- Module Size : 3.8X3.8X1.68cm
- Power Consumption: Without WIFI/4G: around 1.2W with WIFI: around 1.5W (when transmitting data)
With 4G: about 1.9W (when transmitting data) - Client browsing:Supports browsing all non plugin web browsers such as Chrome, Firefox, Edge, Safari, Google, etc., with a maximum of 12 users accessing simultaneously
- Local Storage:Maximum support 256GB, support loop recording
- Network interface:Standard 10/100M adaptive Ethernet, lightning protection and anti-static design
- Support extended WIFI: hotspot and STA LAN modes
- Support for extending POE
Details of 1080P low power IMX307 IP WIFI camera module:
Full HD 2MP 1080P 30fps low light WDR WiFi IP camera module is a camera solution that combines Sony's IMX307 image sensor. With high light sensitivity, low light imaging advantages, and convenient wireless deployment features, it is widely used in fields such as security monitoring, smart homes, and outdoor scenes.
Support customized 2million 1920*1080 low light FF IP WiFi smart door locks camera module with IMX307 CMOS image sensor. It also supports POE. It can capture real-time images outside the door and pushes them to the user's phone through WiFi, supporting remote viewing and voice conversation (such as confirming visitor identity). The low light performance ensures that visitors' faces can still be seen clearly at night.
Product Tags:
|
|
IMX307 IP WiFi Camera Module Full Color 2.9um High Speed Camera Module Images
|
